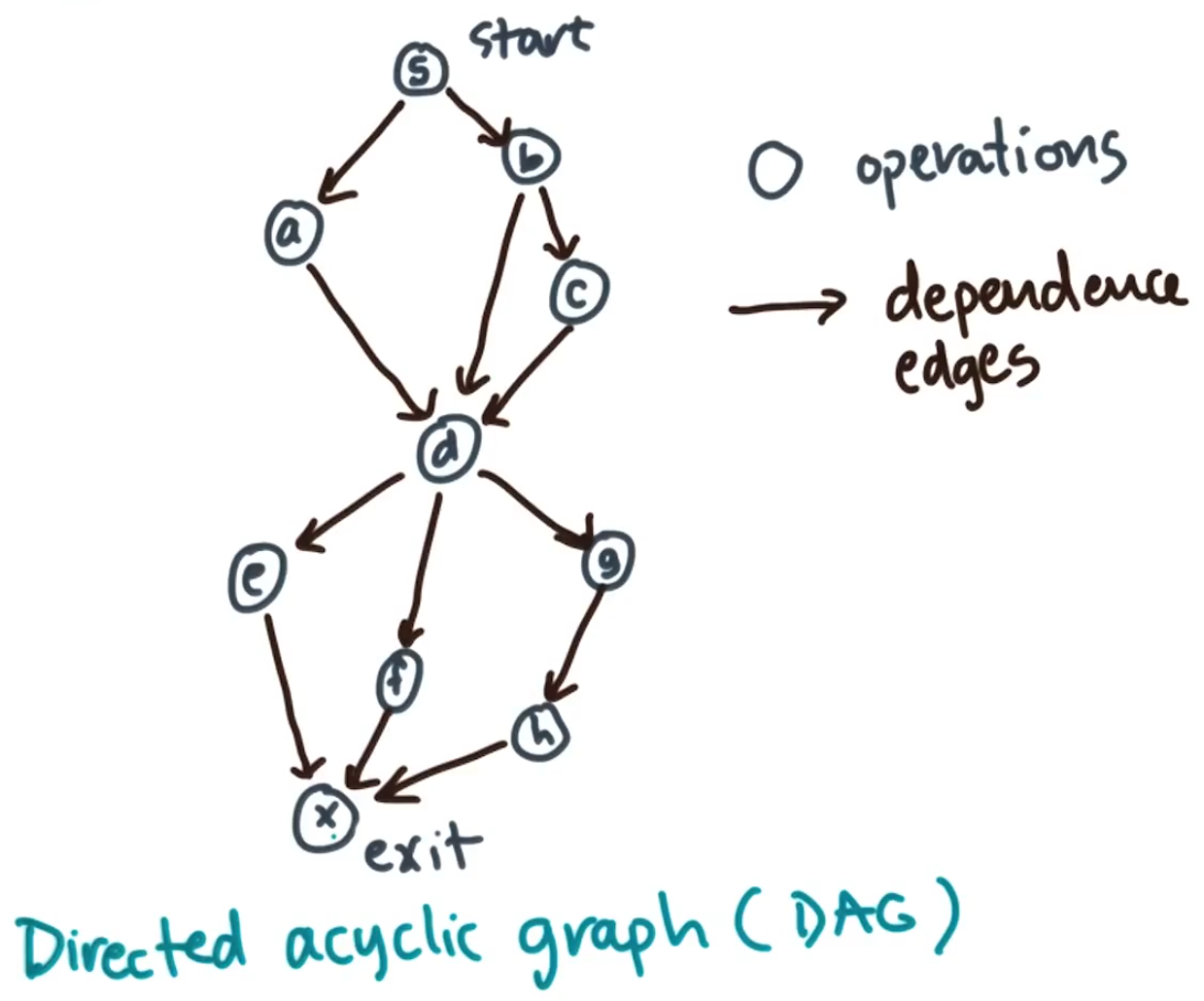

In this lecture we explore a method of parallelisation called the work-span model. This uses DAGs to represent a computation. Where each node is a computation that needs to be run and arrows between nodes represent dependencies. We will assume this is connected, and has a start/stop vertex.

We will run these on a PRAM machine. This is a machine with multiple processors attached to some memory. Here we get ‘parallelism’ by running multiple operations on different processors. These can only be run once their dependencies have all been run already. How to assign the vertices to the processors is called a ‘scheduling problem’.

The natural question is for a DAG how long does it take to run? To answer this we define a cost model with the following assumptions:

• All processors are equally fast.

• A vertex costs 1 operation to run.

• No cost to edges.

• No memory transfer issues (at the moment).

# DAG structure matters

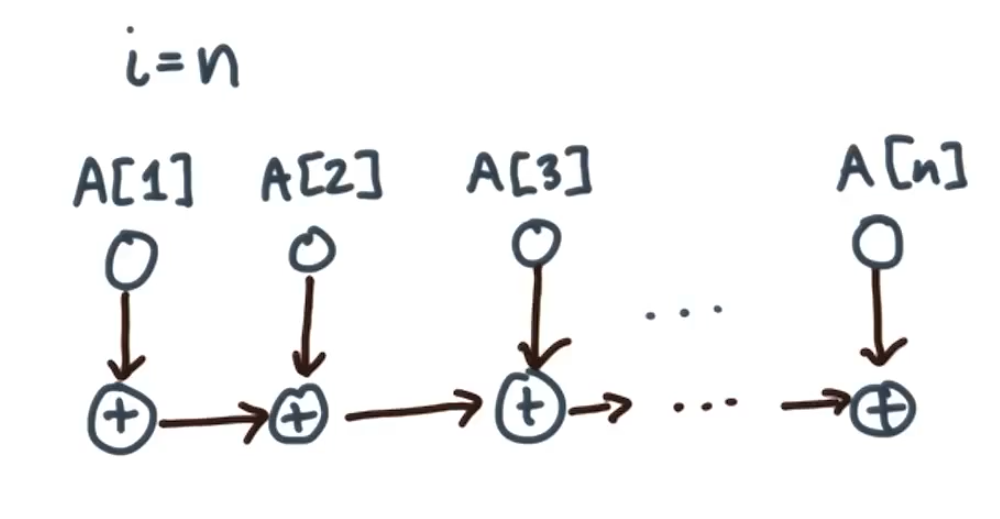

Suppose we need to add $n$ items using $n$ processors. Using the normal iterative approach with a single sum variable will take $O(n)$ time - not really being able to use the $n$ processors.

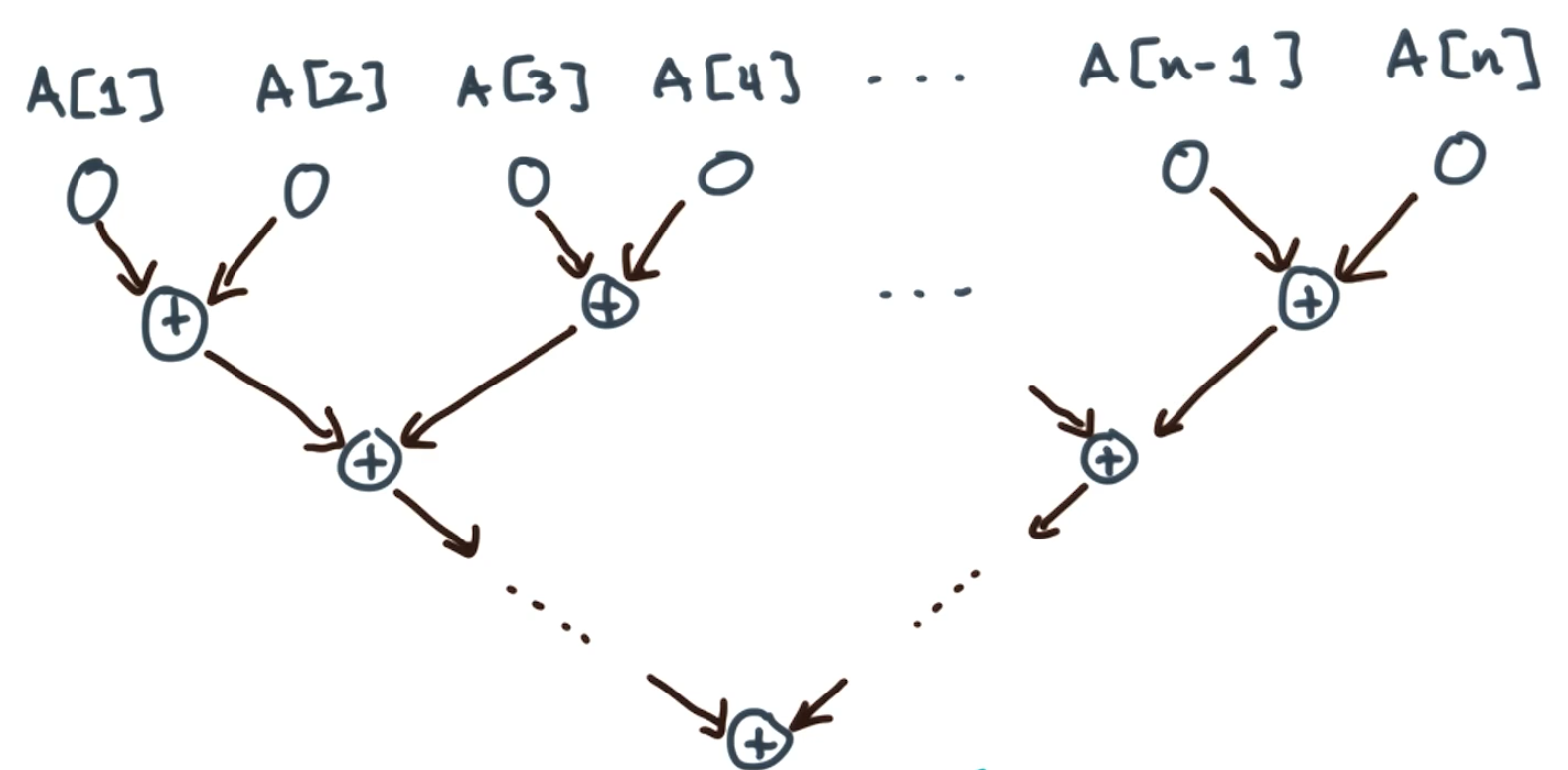

If instead we structure the sum using a binary tree we can do it in $O(\log(n))$ time.

This now uses more of the processors within the summation. Giving us that the structure of these DAGs does affect the run time.

# Work-span analysis

Given some DAG $D_n$ that represents a computation of size $n$ we want to define the work and span of it to start providing bounds on the run time of the DAG.

The ratio of these concepts provides an average of the available parallelism $\frac{W(n)}{D(n)}$ when running this DAG.

There are some immediate things we can say about runtime just using the definitions above.

• $T_1(n) = W(n)$: As each vertex needs to be run, it will take $W(n)$ operations to complete the graph.

• $T_{\infty}(n) = D(n)$: Assuming we have maximum parallelism, we are limited by the longest path between the start and end vertex.

• Span law: For any other number of processors $p$ the span still bounds the run time $T_p(n) \leq D(n)$.

• Work law: Assuming we have $p$ processors that are working all the time the fastest they can complete the DAG is $T_p(n) \geq \left \lceil \frac{W(n)}{p} \right \rceil$.

• Work-span law: Combining the laws above

$$ T_p(n) \geq \max \left \{ D(n), \left \lceil \frac{W(n)}{p} \right \rceil \right \} $$

This is a lower bound, however it would be good to also achieve an upper bound as well.

# Brent’s theorem

As the vertices are in a DAG we can label them $l: V(D_n) \rightarrow [1, D(n)]$ by mapping a vertex to the number of vertices on the path of longest distance between the start vertex and itself. Let’s make some observations about this mapping:

• We have $l(start) = 1$ and $l(end) = D(n)$ (moreover these are the only vertices with these values).

• If $l(v) = l(u)$ then $(v,u) \not \in E(D_n)$ as we could form a longer path to $u$ by going through $v$.

Now let $w_k := \vert l^{-1}(k) \vert$ be the number of vertices assigned label $k$. With this we can get a bound on the execution time of this DAG:

$$ \begin{aligned} T_p(n) & \leq \sum_{k=1}^{D(n)} \left \lceil \frac{w_k}{p} \right \rceil\\ & \leq \sum_{k=1}^{D(n)} \left \lfloor \frac{w_k - 1}{p} \right \rfloor + 1\\ & \leq \sum_{k=1}^{D(n)} \frac{w_k - 1}{p} + 1\\ & \leq \frac{W(n) - D(n)}{p} + D(n)\\ $$

Which gives us our desired bound.

Combining Brent’s theorem with the work-span law we get:

$$ \max \left \{ D(n), \left \lceil \frac{W(n)}{p} \right \rceil \right \} \leq T_p(n) \leq \frac{W(n) - D(n)}{p} + D(n) $$

This is a fairly tight bound when you observe:

$$ \frac{W(n) - D(n)}{p} + D(n) \leq \frac{W(n)}{p} + D(n) \leq \left \lceil \frac{W(n)}{p} \right \rceil + D(n) \leq 2 \max \left \{ D(n), \left \lceil \frac{W(n)}{p} \right \rceil \right \} $$

Which is pretty good given it applies to any DAG.

# Speedup

We want to work out roughly how much ’extra’ we are getting from parallelism. Therefore we want to compare an optimal linear solution $T_1(n) = W(n)$ with the time it takes on $p$ processors.

The best case speedup is $T_p(n) = \frac{T_1(n)}{p}$ giving us a linear speedup in $p$ i.e. $S_p(n) = p = O(p)$. Using Brent’s theorem we can get a lower bound on speedup.

$$ \begin{aligned} S_p(n) & = \frac{W_1(n)}{T_p(n)}\\ & \geq \frac{W_1(n)}{\frac{W_p(n) - D_p(n)}{p} + D_p(n)}\\ & \geq \frac{p W_1(n)}{W_p(n) + (p-1) D_p(n)}\\ & \geq \frac{p}{\frac{W_p(n)}{W_1(n)} + \frac{p-1}{W_1(n)/D_p(n)}}\\ \end{aligned} $$

So to attain linear speed up ideally we want:

$$ \frac{W_p(n)}{W_1(n)} = O(1) \mbox{ and } \frac{p-1}{W_1(n)/D_p(n)} = O(1) $$

# Where do DAG’s come from?

We write them! We will use special terminology to write them down with two key words spawn and sync. The spawn keyword starts a sub-DAG from the process it is handed. The sync keyword waits to gather the results of all previous spawn’s.

This then turns into a DAG by starting a process for the main thread and branching at all the spawn words and joining at all the sync words. Lets look at an example of reduction.

reduce(A[0:n-1])
1. if n >= 2:
2.   a <- spawn reduce(A[0:n/2-1])
3.   b <- spawn reduce(A[n/2:n-1])
4.   sync
5.   return a + b
6. else:
7.   return A[0]

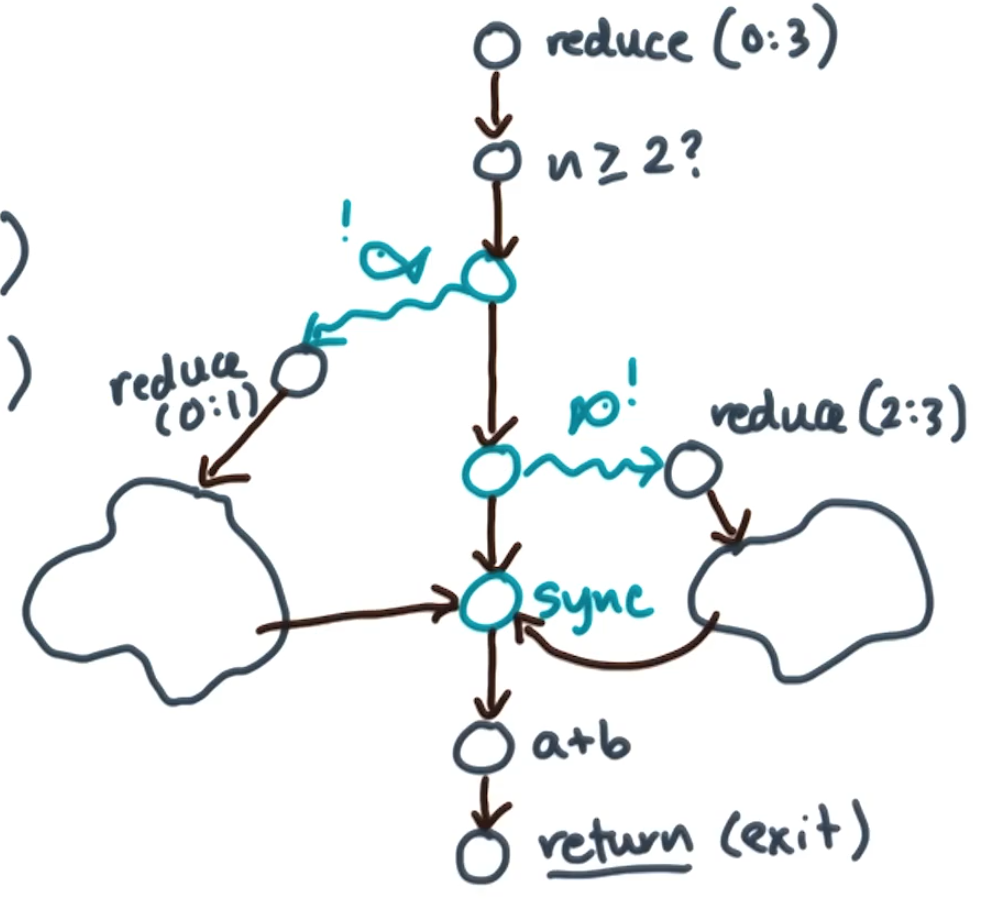

This breaks into the following DAG:

To do analysis on this pseudo-code we can apply the usual techniques. For work we can simply define the recurrence relationship.

$$ W(n) = \begin{cases} 2 \cdot W(n/2) + O(1) & \mbox{if } n \geq 2\\ O(1) & \mbox{otherwise} \end{cases} $$

Which gives us $W(n) = O(n)$.

For span on the other hand we have to consider the spawns length and take the max. That is, $D(n) = \max\{D(n/2), D(n/2), 1\} + O(1)$. In our case this is fairly simple as both spawns are of the same size so we get:

$$ D(n) = \begin{cases} D(n/2) + O(1) & \mbox{if } n \geq 2\\ O(1) & \mbox{otherwise} \end{cases} $$

This gives us $D(n) = O(\log(n))$.

# Goals for parallel algorithms

In the past we always tried to build algorithms with the lowest amount of $W(n)$ normally aiming for linear $W(n) = O(n)$. In parallel algorithms this is the same! (Though it may not always be possible.)

Though for the Span instead of looking for linear - we want to look for poly-logarithmic growth. I.e. we want algorithms that grow like $O(D(n)) = \log^k(n)$.

# Parfor

Suppose we have independent operations $foo(i)$ but we need to run it $n$ times. In parallel notation we would use:

1. par-for i \in [1,n]:
2.   foo(i)

This runs in parallel $n$ copies of $foo$. However, how we turn this into a dag is important - just like the reduce example. If we just all spawn one after another with a sync at the end we get the span growing linearly. So instead we use a tree structure to run the work essentially turning par-for into a process.

par-for(foo, a, b)
1. n = b - a + 1
2. if n = 1:
3.   foo(a)
4. else:
5.   let m = a + floor(n/2)
6.   spawn par-for(foo, a, m)
7.   par-for(foo, m, b)
8.   sync

This branches giving us a span of $D(n) = O(\log(n) + D(foo))$.

# Vector notation

Consider matrix-vector multiplication

Multiply(A, x) -> Ax:
1. y = 0 vector of length n.
2. for i \in [0,n-1]:
3.   for j \in [0,n-1]:
4.     y[i] = y[i] + A[i,j] * x[j]
5. return y

Currently this is fully synchronous so we have $W(n) = O(n^2) = D(n)$. The first parallelisation we can do is changing the outside loop to a par-for. However, we can not turn the inner for-loop into a par-for as it relies on the same data, namely $y[i]$.

Multiply(A, x) -> Ax:
1. y = 0 vector of length n.
2. par-for i \in [0,n-1]:
3.   for j \in [0,n-1]:
4.     y[i] = y[i] + A[i,j] * x[j]
5. return y

This makes some improvement $W(n) = O(n^2)$ but since the inner loop is only $O(n)$ we have $D(n) = O(n)$. Currently the thing stopping us from parallelising the inner loop is the shared variable $y[i]$ - however just like reduction we are choosing to use a serial way to do this. Instead lets reduce in a tree-like structure.

Multiply(A, x) -> Ax:
1. y = 0 vector of length n.
2. par-for i \in [0,n-1]:
3.   t = 0 vector of length n.
4.   par-for j \in [0,n-1]:
5.     t[j] = A[i,j] * x[j]
6.   y[i] = y[i] + reduce(t)
7. return y

By creating $t$ we can use par-for in the inner loop with the reduction at the end. This still has $W(n) = O(n^2)$ but $D(n) = O(\log(n) + \log(n) + \log(n)) = O(\log(n))$.

To make this kind of operations easier to parse we introduce short notation for it.

Vector multiplication
1. par-for j \in [0,n-1]:
2.   t[j] = A[i,j] * x[j]

Shorthand notation:

Vector multiplication
1. t[:] = A[i,:] * x[:] // Implicit par-for loop here

We actually reduce this even further using the reduce key word.

Vector multiplication
1. t = 0 vector of length n.
2. par-for j \in [0,n-1]:
3.   t[j] = A[i,j] * x[j]
4. y[i] = y[i] + reduce(t)

Shorthand notation:

Vector multiplication
1. y[i] = y[i] + reduce(A[i,:] * x[:]) // Implicit par-for loop and temporary variable
